Metalworm offers suitable material qualities produced using the WAAM process.

Metalworm gives you the ability to create high-quality geometries with less tolerance from the CAD model thanks to integrated process parameter libraries in the system for each material.

A thorough parametric study of the WAAM process served as the foundation for the process library, which now includes process parameters for aluminum and steel alloys.

Choose your material, then have fun printing your component!

Wire Arc Additive Manufacturing, Direct Energy Deposition, WAAM, DED

“Choose materIals that have the structural potentIal to sustaIn and bear the buIldIng loads”

MetalWorm can be used to build parts utilizing a variety of metals and alloys. A few materials have been used, and the relevant mechanical properties have been shared in the process library. MetalWorm team is investigating additional materials and will soon release the process specifications for those materials.

Our approach and integrated technologies at MetalWorm are particularly adaptable to practically any material, which results in excellent mechanical qualities of WAAM manufactured components.

In general, and from the perspective of mechanics, a good material is one that has

Homogeneous microstructure

Isotropic mechanical characteristics

No microstructural defects such as porosity

WAAM RT

The materIals utIlIzed so far by MetalWorm's WAAM method have acceptable and IsotropIc mechanIcal propertIes, homogeneous mIcrostructure, and nearly no porosIty.

MATERIALS

ALUMINUM ALLOYS

2319, 4043, 5183, 5356, 5087, 6063

STEEL ALLOYS

ER70, ER80, ER90, ER120

STAINLESS STEEL

316L, 304L, Duplex, Invar

TITANIUM GRADES

Ti6Al4V Grade 5

INCONEL ALLOYS

Inconel 625, Inconel 718

ACTIVE COOLING TECHNOLOGY

High heat accumulation in WAAM have a negative effect on the stability of the process in terms of the geometrical accuracy, deposition defects, microstructural evolution and material properties of as-fabricated parts. A common way of preventing heat accumulation is to implement interlayer cooling times before depositing the subsequent layer. However, the idle times required to cool down the interlayer temperature during printing of large scale components can be significantly high which is against the higher deposition rate nature of the WAAM process.



Metal Worm suggests a brand-new active cooling system that promotes heat transmission to the substrate and thus reduce high heat accumulation. Additionally, active cooling technology makes it possible to produce parts on thinner substrates, which reduces substrate waste and costs.



The WAAM process can be accelerated using active cooling technology by cutting down on the inter-layer cooling time.

MetalWorm’s studies has revealed that the presence of cooling table in WAAM process slightly decreases the grain size and has nearly no effect on the phase distribution.

MetalWorm Cooling Table + Wire Arc AM

Wire Arc AM

VIBRATION TECHNOLOGY

Coarse and columnar grains, such as dendritic structure, are generated in the microstructure as a result of the cyclic and rapid heating and cooling that occurs during the Wire + Arc Additive Manufacturing (WAAM) processing of materials. Implementing in-situ vibration prevents the development of columnar grains and encourages the transition of coarse columnar grains into fine and equiaxed grains, leading to superior mechanical characteristics. Vibration assisted WAAM process can also reduce residual stresses, subsequent and eventually increases the accuracy of the geometry.



It was observed that the elongation of the columnar grains formed in the interface of substrate and WAAM fabricated part decreases when the vibration table was incorporated during the process. It is then predicted that implementing ultrasonic vibration can further refine the microstructure and achieve equiaxed grains in WAAM process.

MetalWorm Vibration Table + Wire Arc AM

Wire Arc AM

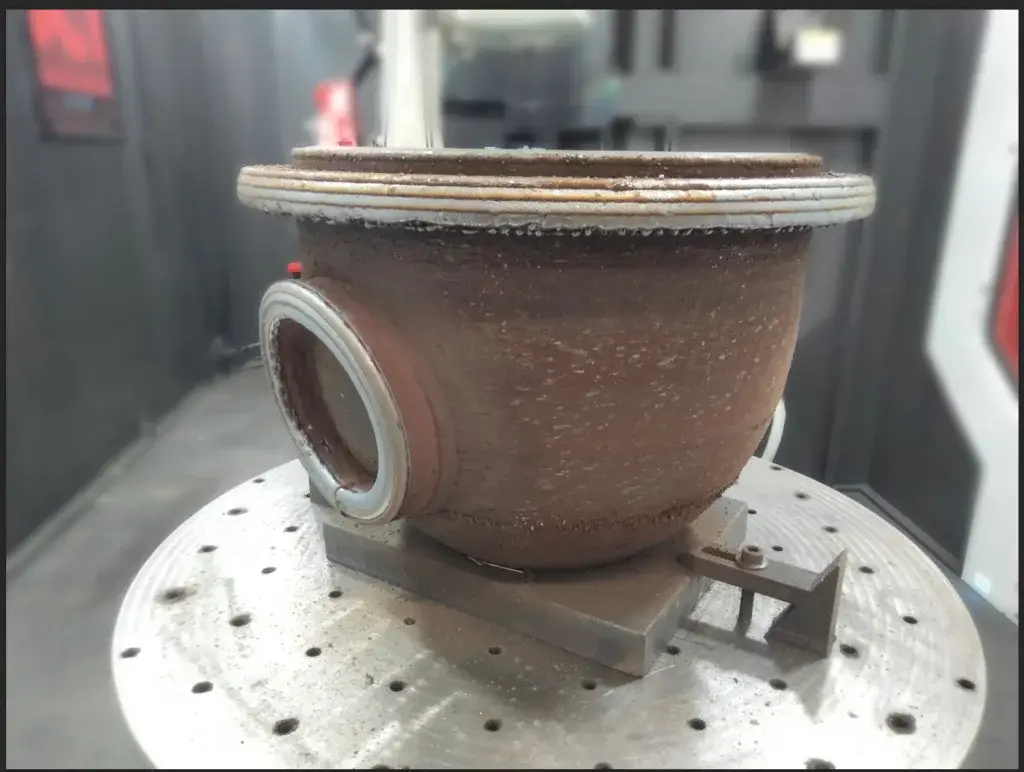

WAAM Part, DED Part, Steel Part, Metal Additive Manufacturing, WAAM Oil and Gas

OIL AND GAS

ER70S-6 Steel Alloy

Size Ø435x300mm
Weight 51.39kg
Print Time 48h 20m

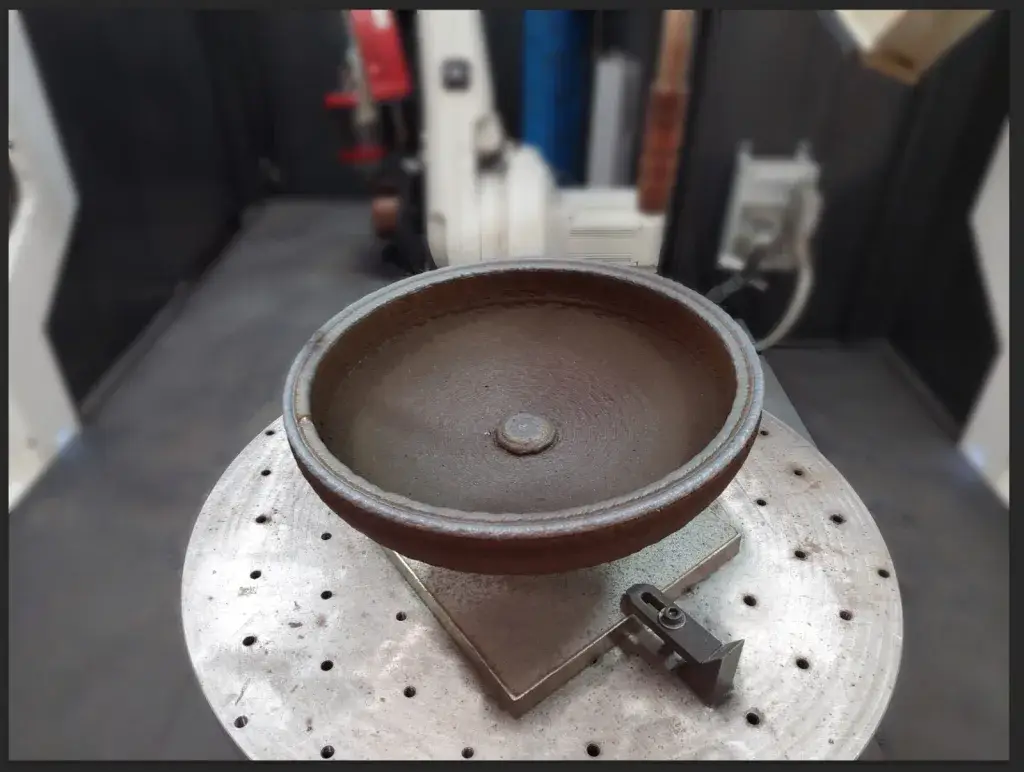

WAAM Part, DED Part, Invar 36 Part, Metal Additive Manufacturing, WAAM Dome Shape Mold Part, Aerospace Mold Part
